Quality

Since 2006, OSIAS had started to manufacture the fuel pump for aftermarket. These fuel pumps are all made up of first-class material in order to strengthen the durability and extend the usage life. The all procedures are executed strictly according ISO/TS1649 and QS900 standard which is highest quality class for OEM in auto industry. Every pump is 100% tested before shipment.

Features

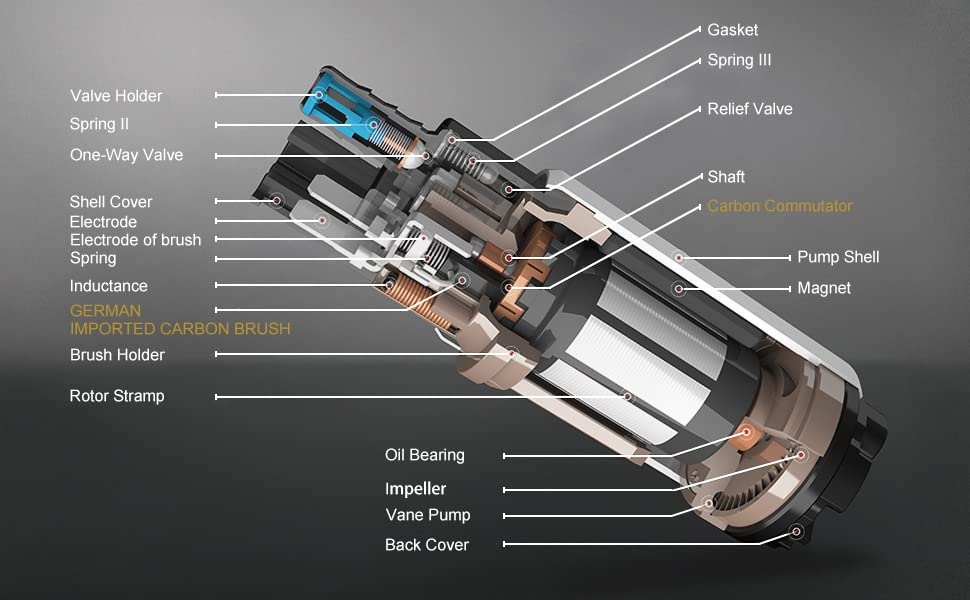

·Composite Turbine Impeller design brings quiet operation

·Center Inlet easily to install, In-line with outlet

·39mmdiameter fits most applications

· Designed for high output naturally aspirated and forced induction EFI vehicles

· For gasoline vehicles (pump life may be diminished when used with E85 fuel)

· Can be used with carbureted or EFI applications

· Turbine pump mechanism increases durability and can be used in pulse modulated applications.

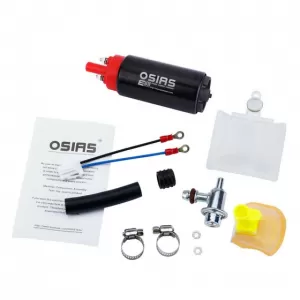

· Typical & complete kits exactly same as above title picture showed.· Fuel Strainer: 30 micro gradient density material.

· Universal connector.
· Sponge Sleeve
· Rubber hose
· Stainless Steel Clamps: 2pcs.


Technical Data

· Min Voltage Input:6V
· Max Voltage Input:18V
· PRV Activation:0-100PSI
· Flow Rate:340LPH/40PSI(13.5V)
· Current(40PSI):<13A(13.5V)

· Horsepower Capabilities: Up to 800hp for naturally aspirated
  engines & 750hp for supercharged or turbo engines

Mechanical Spec

· Overall Length (tip to tip): 5"(123MM)
· Weight:12.6oz (360g)
· Length of Pump Body Metal Case: 3 1/8"(80MM)
· Pump Body Diameter: 1 1/2"(39MM)
· Inlet Fitting: 7.7mm ID, 11.0mm OD

· Outlet Fitting: 5/16" hose clamp

Application
 The 340 LPH Fuel Pump will fit every model, engine, type or style for every vehicle listed:

1996-1997   Ford Aerostar
1990-1996   Ford Bronco
1989-1990   Ford Bronco II
1992-1997   Ford Cabina
1990-1992   Ford Crown Victoria
1992-1996   Ford E150 Econoline
1992-1996   Ford E250 Econoline
1992-1996   Ford E350 Econoline
1992-1996   Ford E450 Econoline
1992-1996   Ford E450 Superduty
