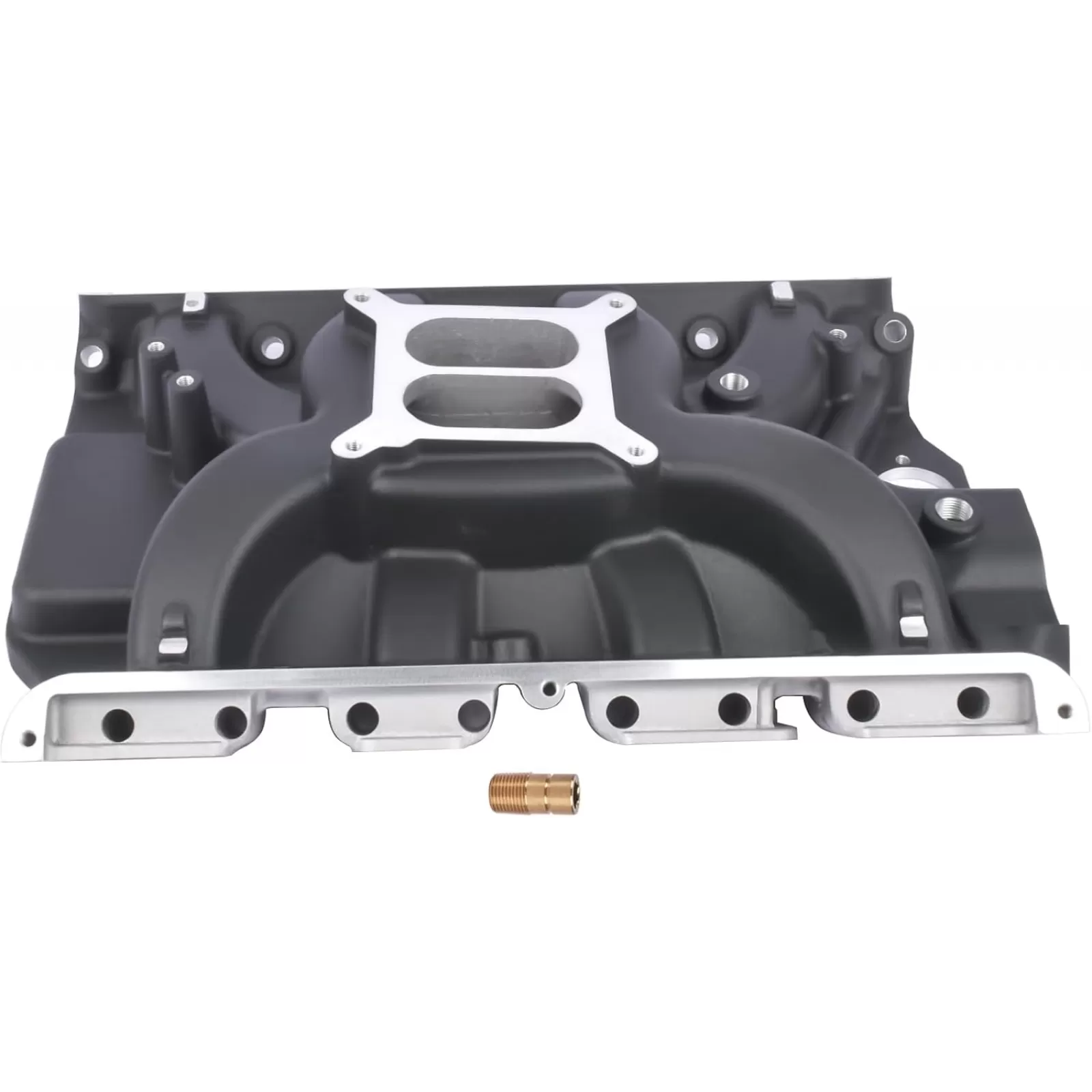

OSIAS Ford 390 Intake Manifold

for Ford 390 406 410 427 & 428ci FE V8’s Mixizap

SKU: B0DG4Y5YFT

Description
Reviews

OEM Part Numbers:
7105
440-502-7256
R1148

Fit for the Following Models
Replacement for Ford 390 406 410 427 & 428ci FE V8’s

Specifications
Deck Height:Standard
Intake Style: Dual Plane
Carburetor or Throttle Body Flange: 41 50 Square Bore Carb Base Flange
RPM Range: 1500-6500
Material: Aluminum
Finish:Satin/black/polish
Includes Gaskets: No
Low/Med Rise
Fuel System Type: Carbureted
Requires Aftermarket Fuel Rails: No
Includes Fuel Rails: No
Port Dimensions: 1.16" Wx 1.97" H
Intake Height: 4.89" Front - 6.06"Rear
No Exhaust Crossover Passage

【Replacement Part Number】-7105, 440-502-7256, R1148
【Compatible Engine Models】-Dual-plane aluminum intake manifold compatible with Ford 390, 406, 410, 427 and 428ci FE V8
【Function】-Square hole dual plane intake manifold improves performance, improves throttle response and increases torque. Suitable for high performance street or competition engines between 1500 and 6500 RPM
【Feature】-4150 square hole carbide base flange for durability.Dual plane constant cross-sectional area design improves low and mid speed acceleration, while optimized flow path increases peak horsepowerng life and doesn't easily be broken
【Product Parameters】-Port Dimensions: 1.16" W x 1.16" H 1.16" W x 1.97" H; Intake Height: 4.89" Front - 6.06" Rear, No Exhaust Passage. Front - Rear 6.06", no exhaust crossover
