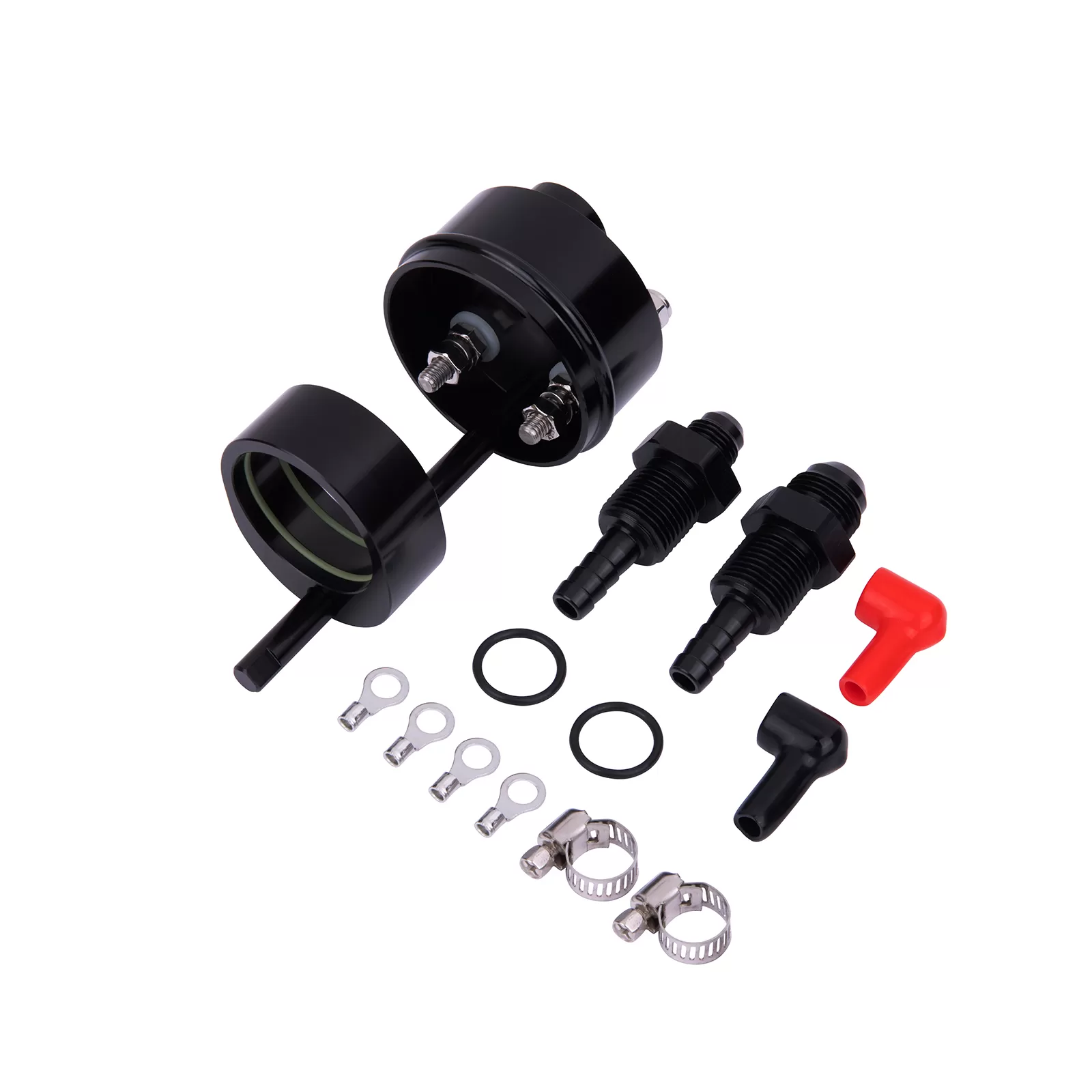

OSIAS 39.5mm Fuel Pump Hanger Adapter to suit Walbro Style Pumps in all 044 Surge Tanks. Designed to replace an 044 with a modern, quiet, efficient, high flow fuel pump. Includes Hanger, PTFE Hose, Clamps.

This fuel pump hanger uses a unique design to replace the now obsolete Bosch 044 with a modern high flow fuel pump such as a Walbro 460 or 525.  will fit any brand of surge tank designed for an 044. Includes Hanger, PTFE Hose, Clamps. Hanger has bulkhead terminals to allow internal mounting of Walbro 460 & 525 lph style pumps.

Specifications:

• AN-8 ORB outlet
• Includes AN-6 and AN-8 outlet fittings with a 10mm internal Barb
• Intank hose, clamps, electrical terminals and boots included

Suits the following pumps:

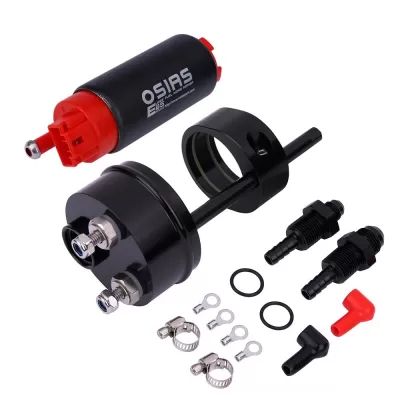

• OSIAS 340lph Fuel Pump – 39mm E85 Safe Walbro 255 GSS342 Equivalent – EFP-500
• Walbro 460 lph Fuel Pump F90000267 w/ Fitting Kit
• Walbro 460 lph Fuel Pump High Pressure F90000274
• Walbro 525 lph Fuel Pump Kit F90000285
• Walbro 535 / 540 lph Fuel Pump High Pressure F90000295

OSIAS fuel pump brackets have been designed to attractively mount and insulate a variety of fuel pumps. The range includes brackets for single or twin-mount configuration of 60mm and 43.5mm pumps, engineered from precision alloy, and hardcoat anodised to enhance your fuel system installation.
